OFFICERS ON THE NAVY LIST, June 1944.
Not on Navy List.

OFFICERS ON THE NAVY LIST, July 1945.
Tempy. Lieut, N. M. Moffatt, Feb 45. (In Command)
Lieutenant, E. E. C. Henriques, 26 June 44. T.R.N.V.R.

If you, your father or your grandfather have any additional information about this ship, crew lists, stories, photographs, please send copies of them to be added to our records and this website.

Thank you.

Contact: johntenthousand@yahoo.co.uk

RETURN TO SHIP DATABASE.
Click here.

RETURN TO FRONT PAGE.
Click here.

MOVEMENTS.

8 February 1944, completed.
At Trinidad with sister minesweeper BYMS 2257

29 August 1947, returned to USA.

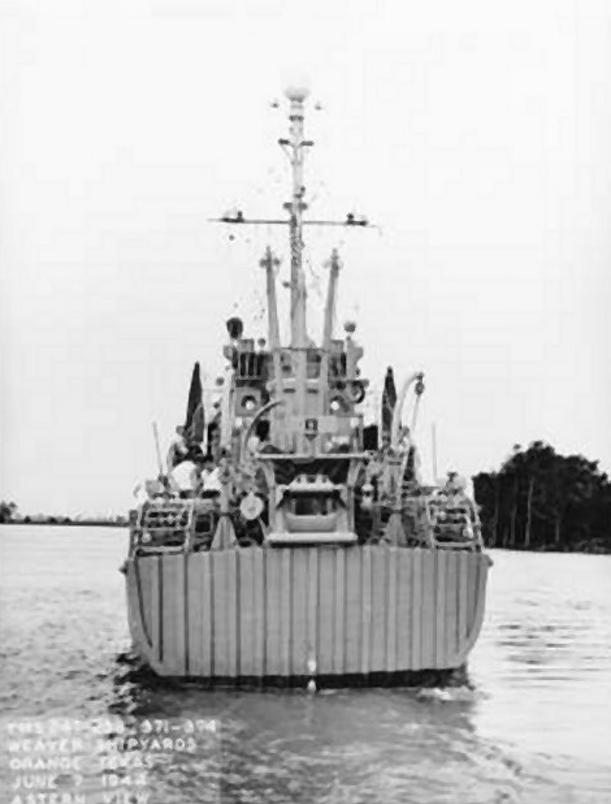

BYMS 2258 in February 1944 before being handed over to Great Britain.

BYMS 2258
British Yard Mine Sweeper


BRITISH YARD MINE SWEEPERS

BYMS’s were built in the United States and transferred the Royal Navy under the Lend-lease Programme. “British Yard Mine Sweepers” are so called because they were built to the same design as the US Navy’s “Yard Mine Sweepers”.

Little is known about BYMS 2258 other than she was based at Trinidad with her sister minesweeper BYMS 2257. It is thought she was manned by men of the Trinidad Royal Navy Volunteer Reserve.

MINE SWEEPING FLOTILLA:  WEST INDIES. 2257, 2258. Both at Trinidad.

Built by: Weaver Shipyard, Orange, Texas, USA.
Laid down: 31 October 1942.
Launched: 28 October 1943.
Handed over to Royal Navy: 8 February 1944.
Returned to USA: 29 August 1947. Sold to South Korea in 1948 and named Kim Chon. (YMS 513)

SPECIFICATIONS:

Wooden hull. Length, 130 feet. Beam, 25 feet 6 inches. Depth, 12 feet I inch. Draft, 8 foot 10.5 inches. Displacement 207-215 tons.

Engine: Two 800 bhp General Motors diesel engines.

Speed: 14.6 knots. 10 knots while sweeping. (Eight knots with double Oropesa sweeps)

Range: 2,500 at ten knots.

Compliment: 3 officers and 27 men.

Armament: One 3-inch HA/LA gun and two Oerlikon anti-aircraft guns.

BYMS’s were fitted with a drum on the stern with LL (double L) cables for sweeping magnetic mines, an acustic hammer on the bow for sweeping acustic mines and Oropesa floats for sweeping tethered mines.

All YMS and BYMS were built to the same design, the only variation was in the number of exhaust stacks. Minesweepers 1 to 134 had two sacks, 135 to 480 had one stack, 466 to 479 had no stacks.
